All file downloads are .stl unless otherwise specified
Please let me know if you have any questions or suggestions - andrewclarkpottery@gmail.com

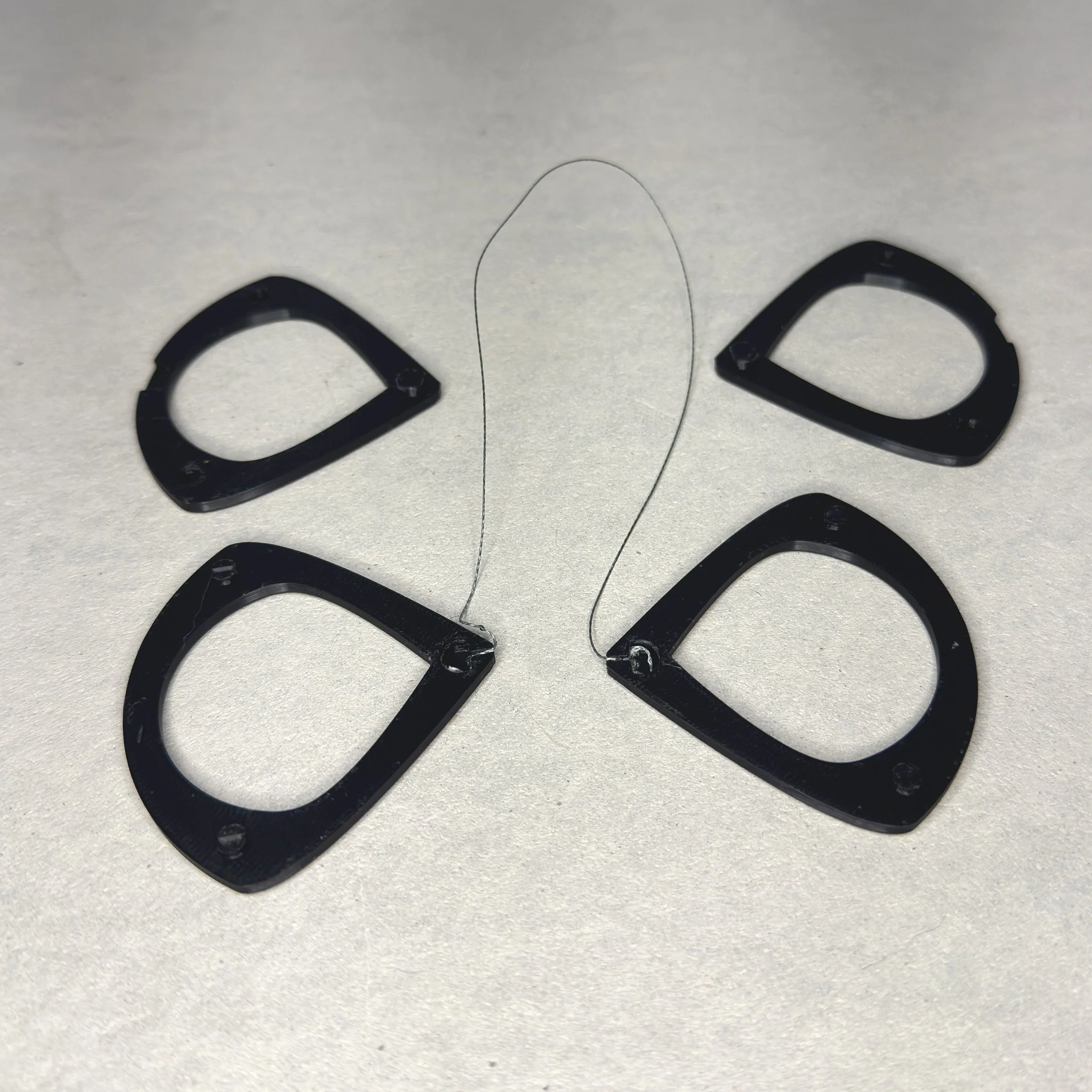

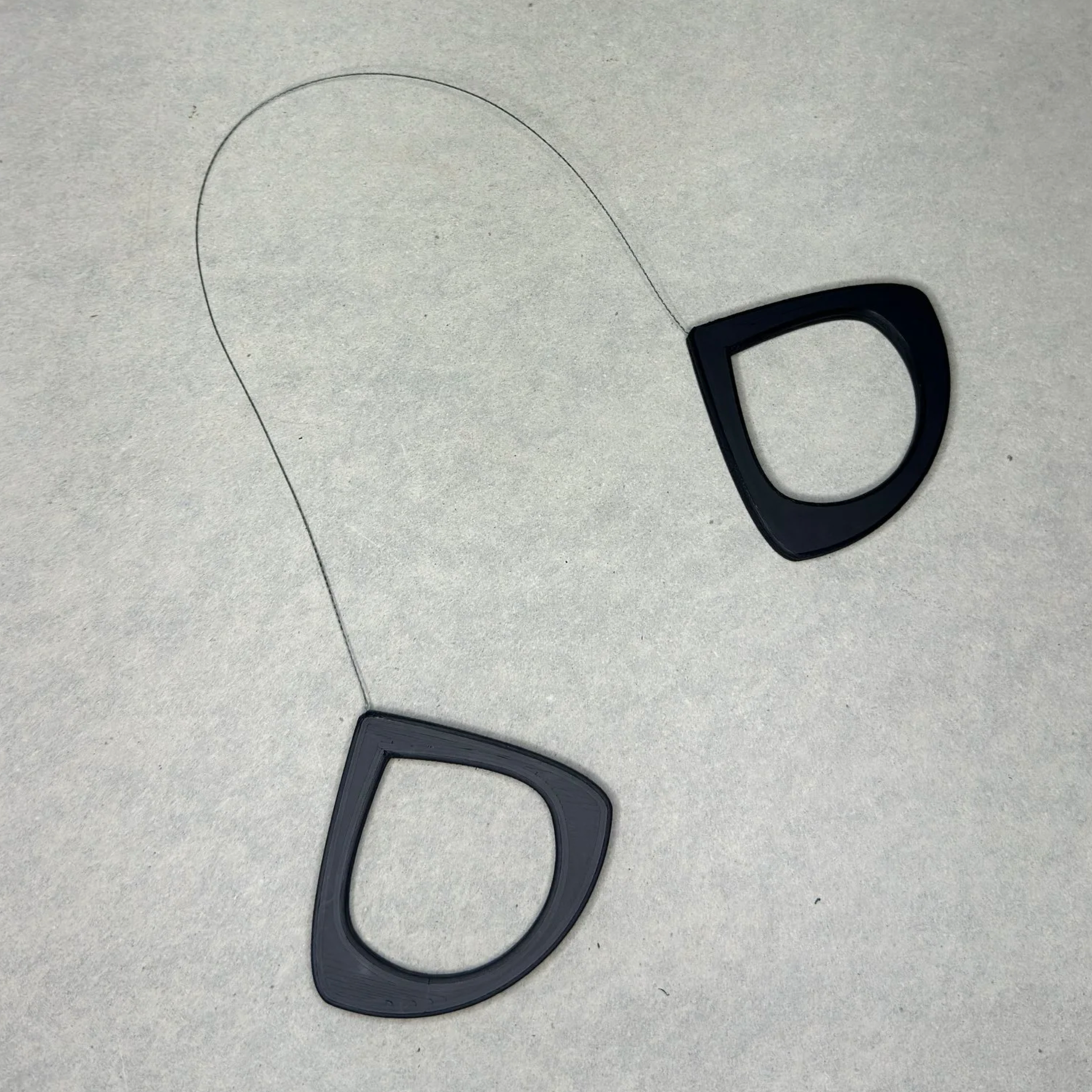

Wire Tool
Wire tool handles are meant to be used with .32 diameter braided fishing line. Walmart Link
Tie 3-5 knots on each end of the fishing line and fit knot and excess line into recessed hole on bottom part of the wire tool. Feed the line through the small opening and snap the top part on to lock wire into place. The first time snapping together it may be tight and require extra pressure. Opening and closing after the initial build should be easier if printed correctly.

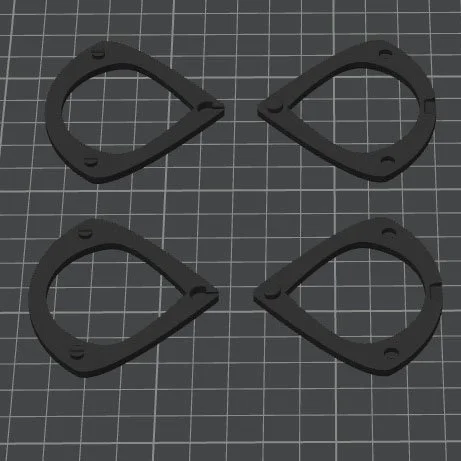

Print on high quality and slow settings to ensure small details are precise enough to lock together correctly. I have had the best prints at .08 mm print height and 60 mm/s speed on all layers.
Throwing Gauge
Throwing gauge with 2 measuring arms. Pointers on arms slide back to allow for more room while throwing then easily slide forward to the fully extended position to measure and duplicate a form. Gauge is designed to clamp onto the splash pan of most wheels. Should easily work on Speedball, Brent, and Shimpo wheels as well as others. See images to decide if your wheel will be applicable.
Around 20 x 30 cm
Around 7 x 11 in
Designed to work with below hardware
3x 1/4”-20 Hex Nuts LOWES LINK
2x 1/4”-20 3/4” length Hex Bolts LOWES LINK
1x 1/4”-20 1” length Hex Bolt LOWES LINK
Floor Finishing Rib
16.5 x 4 cm
6.5 x 1.5 in
3mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish

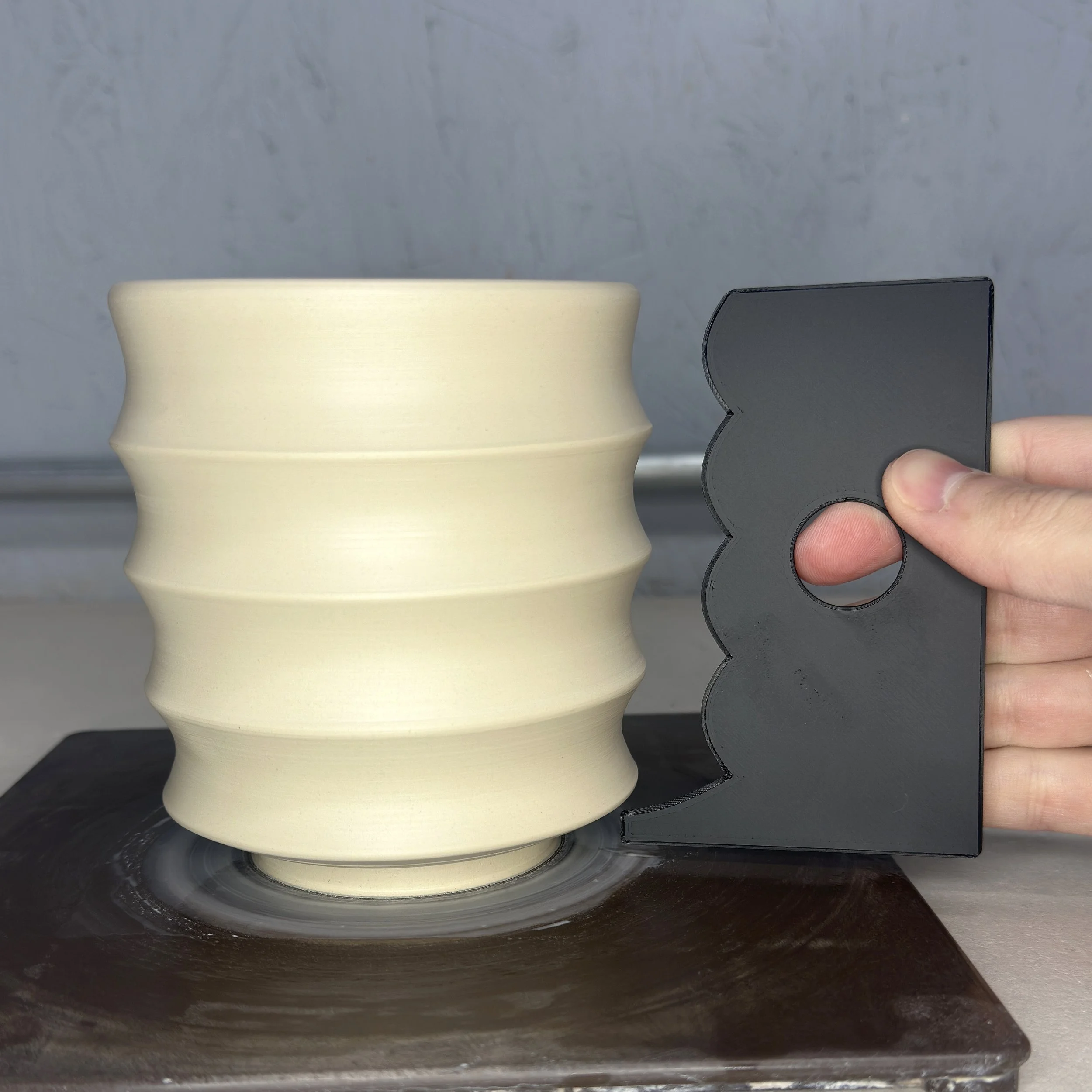

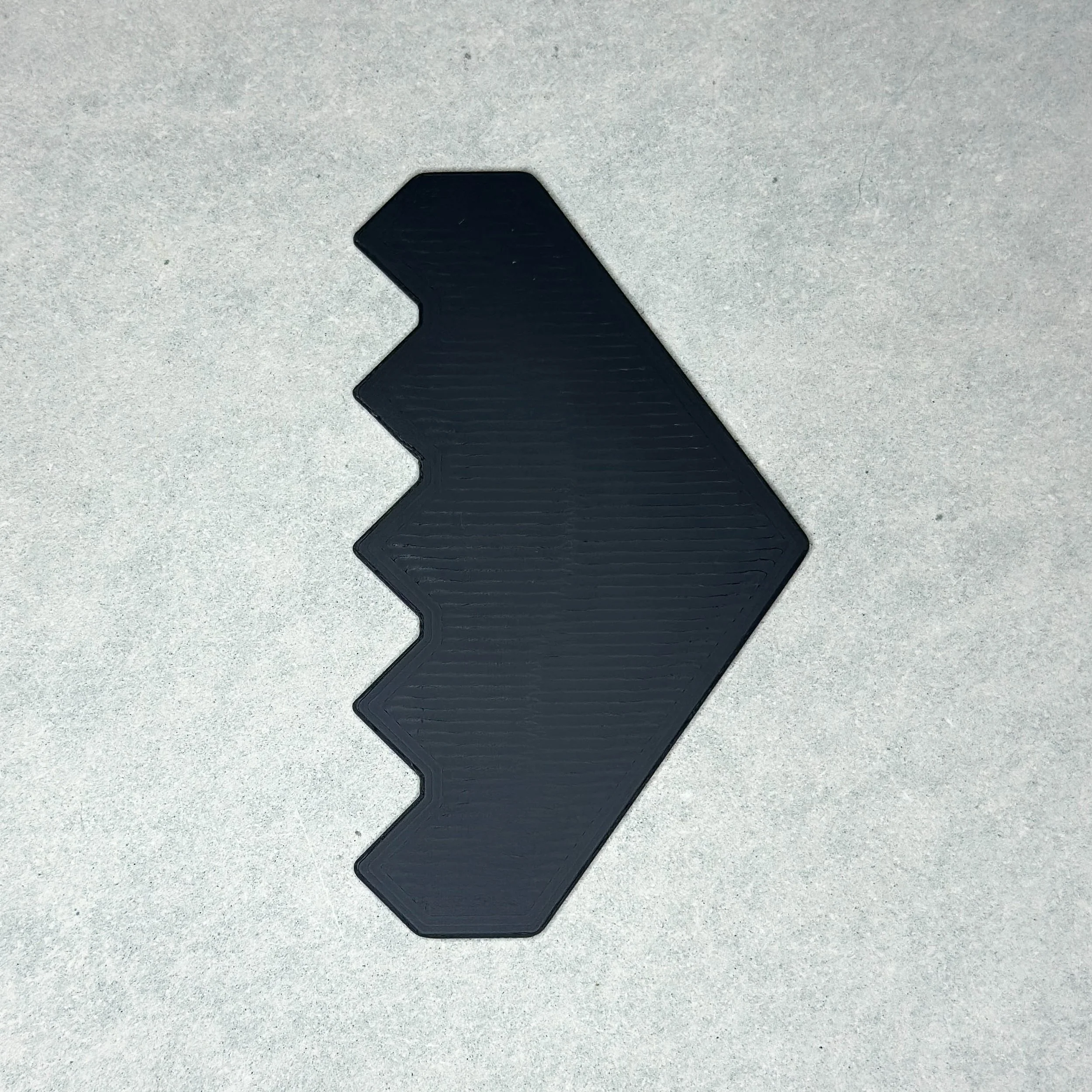

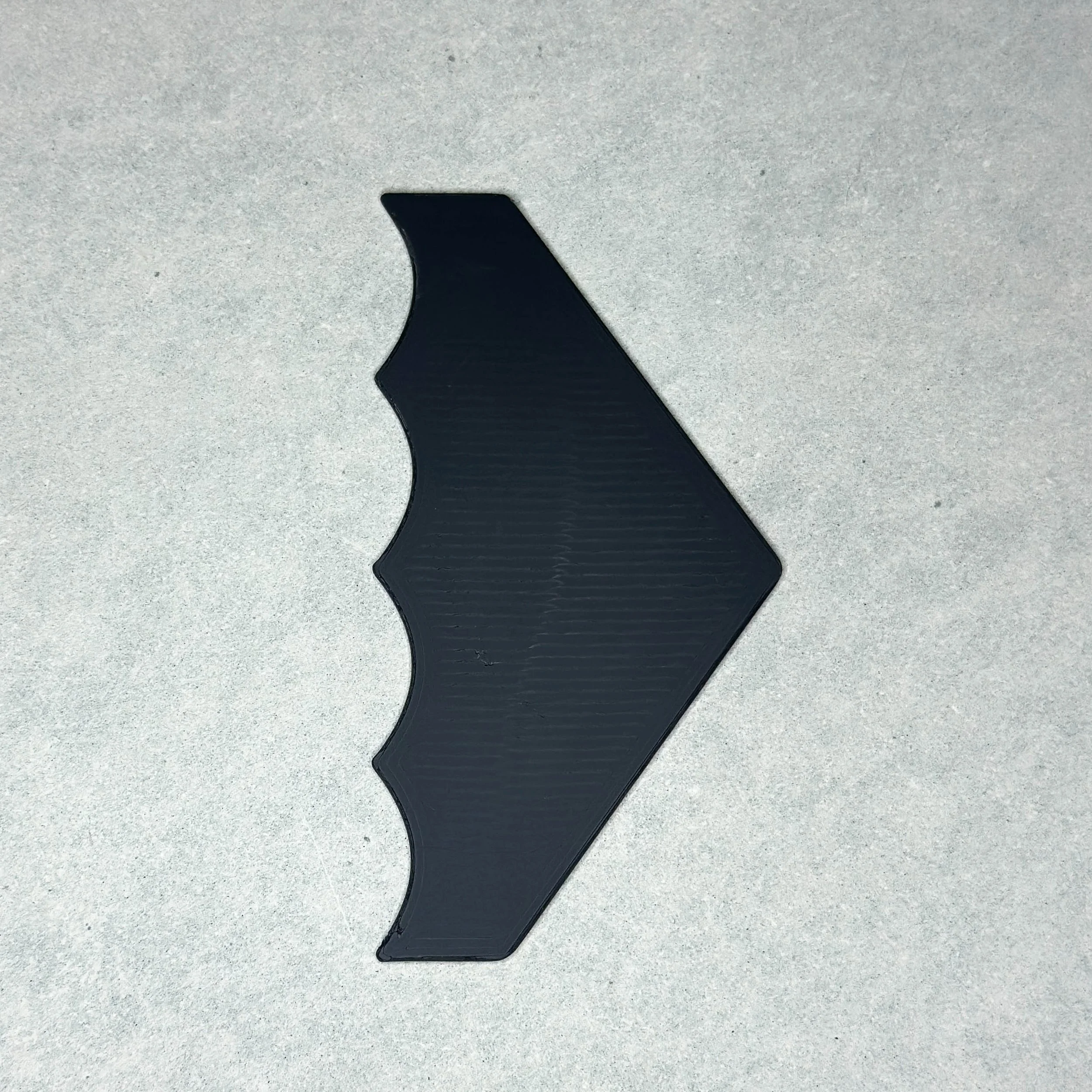

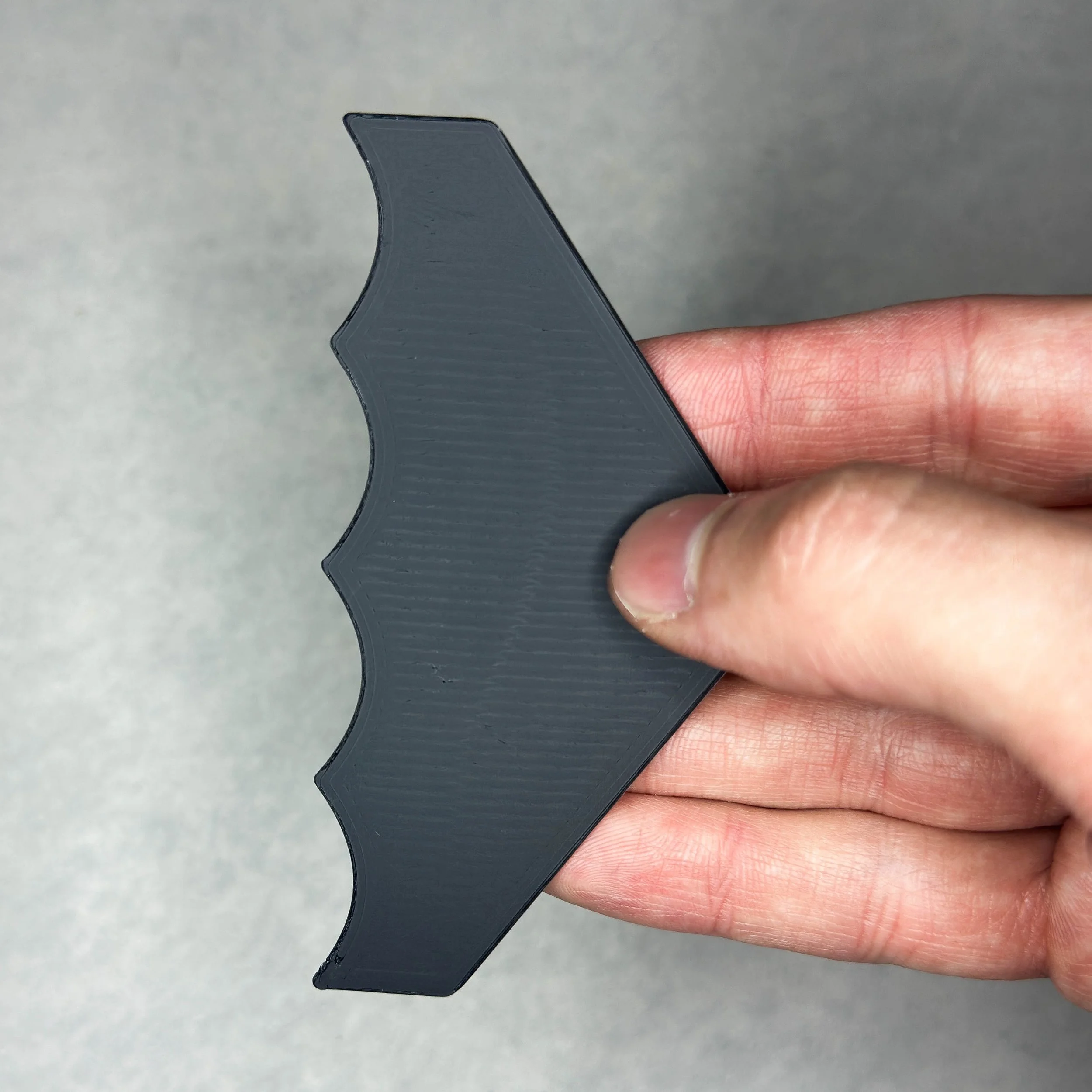

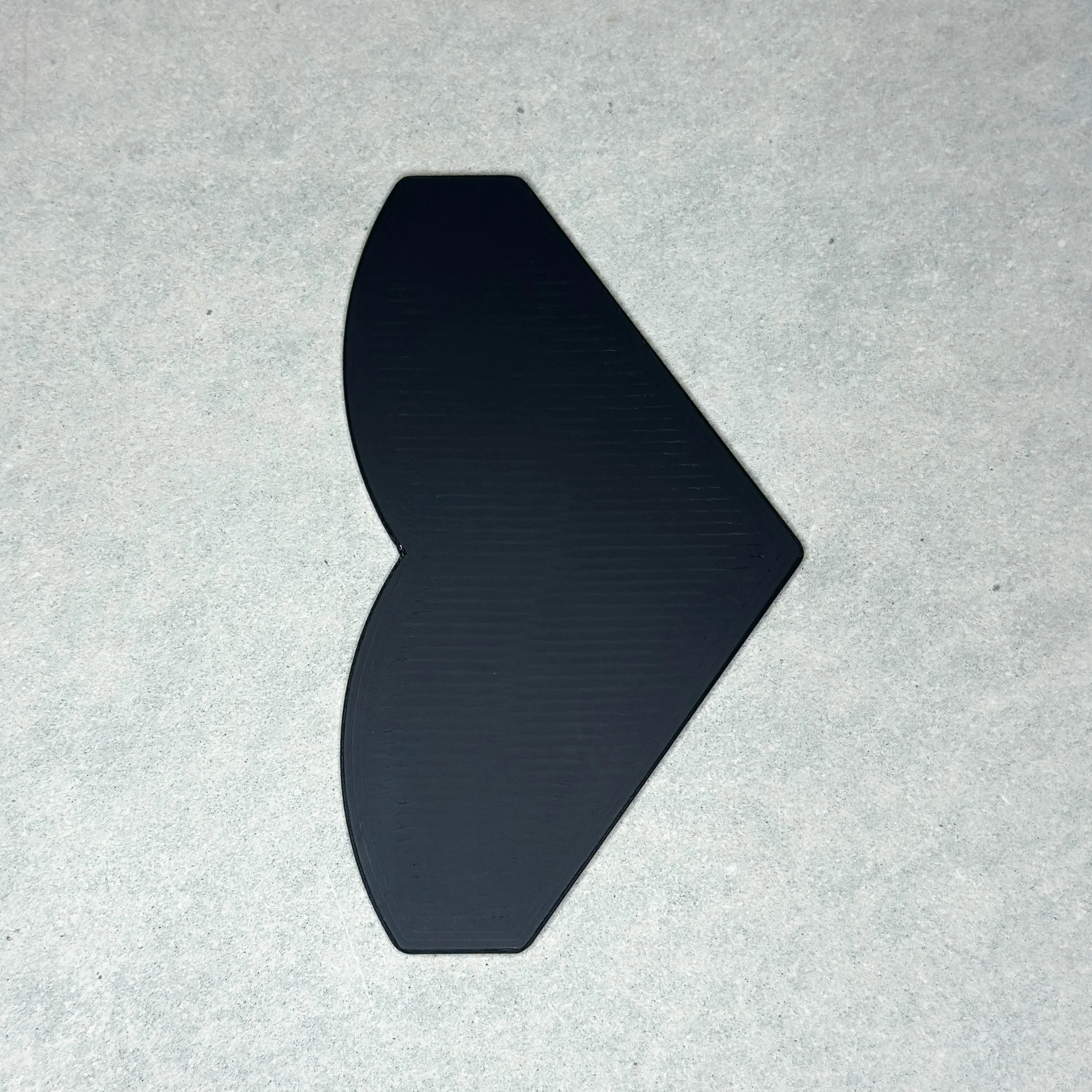

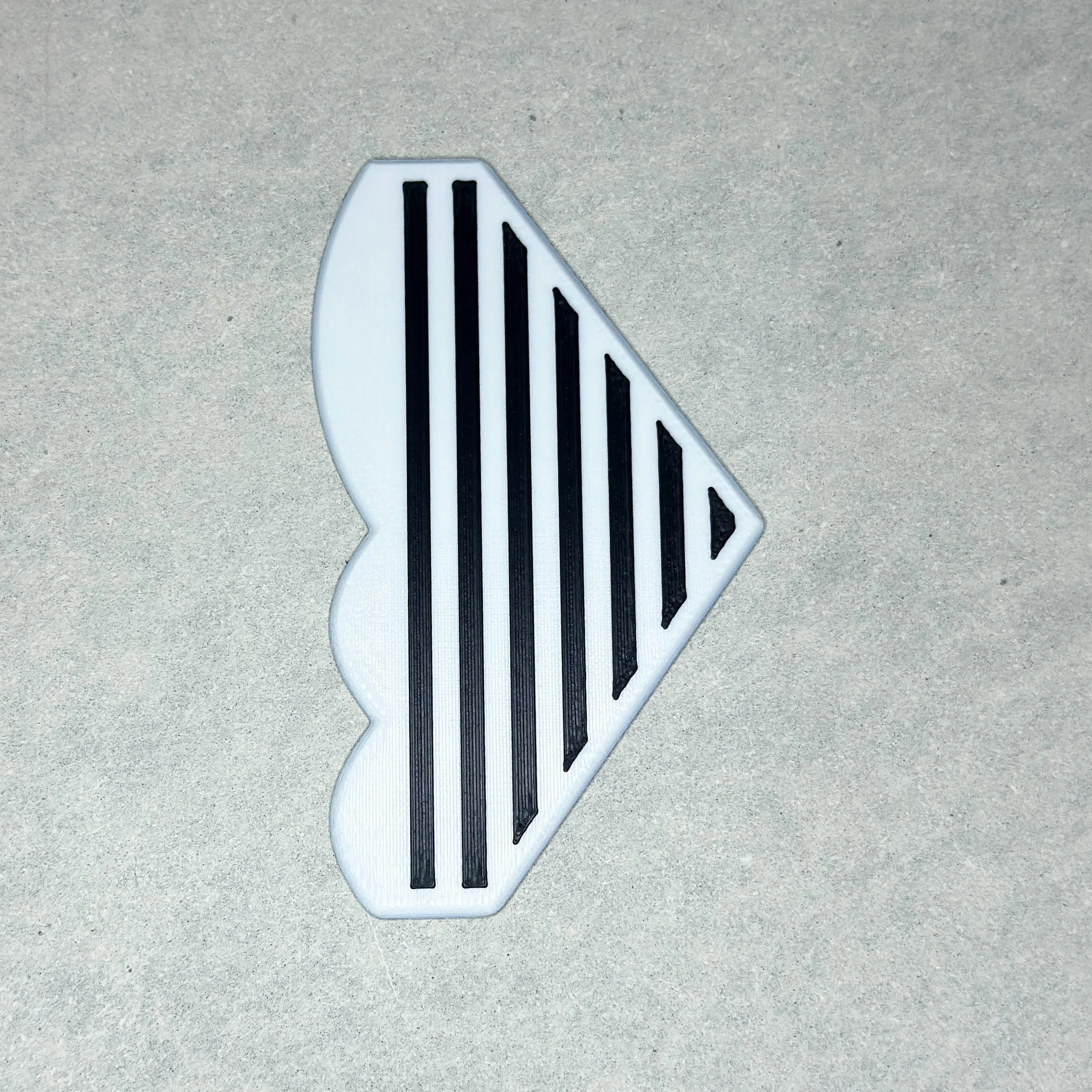

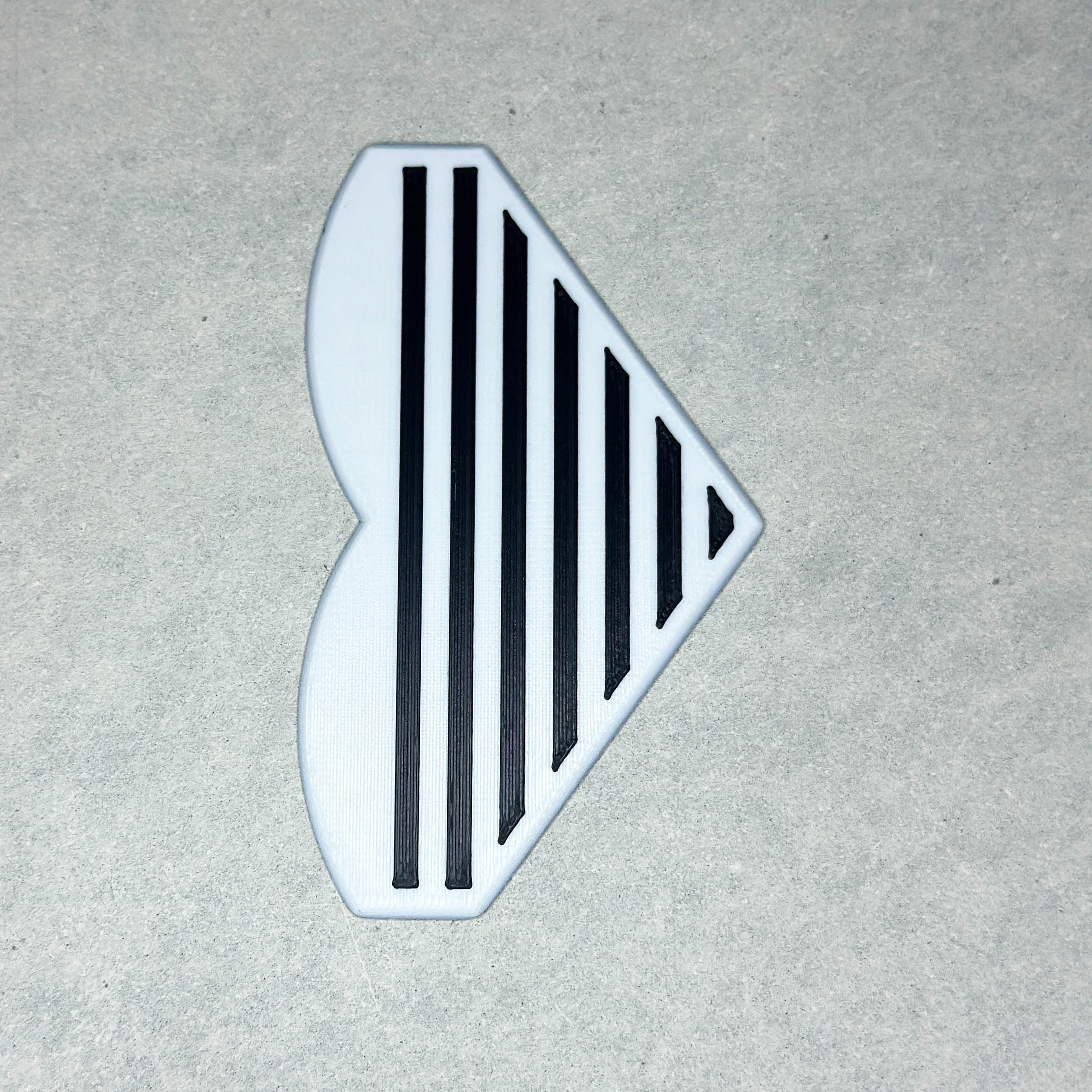

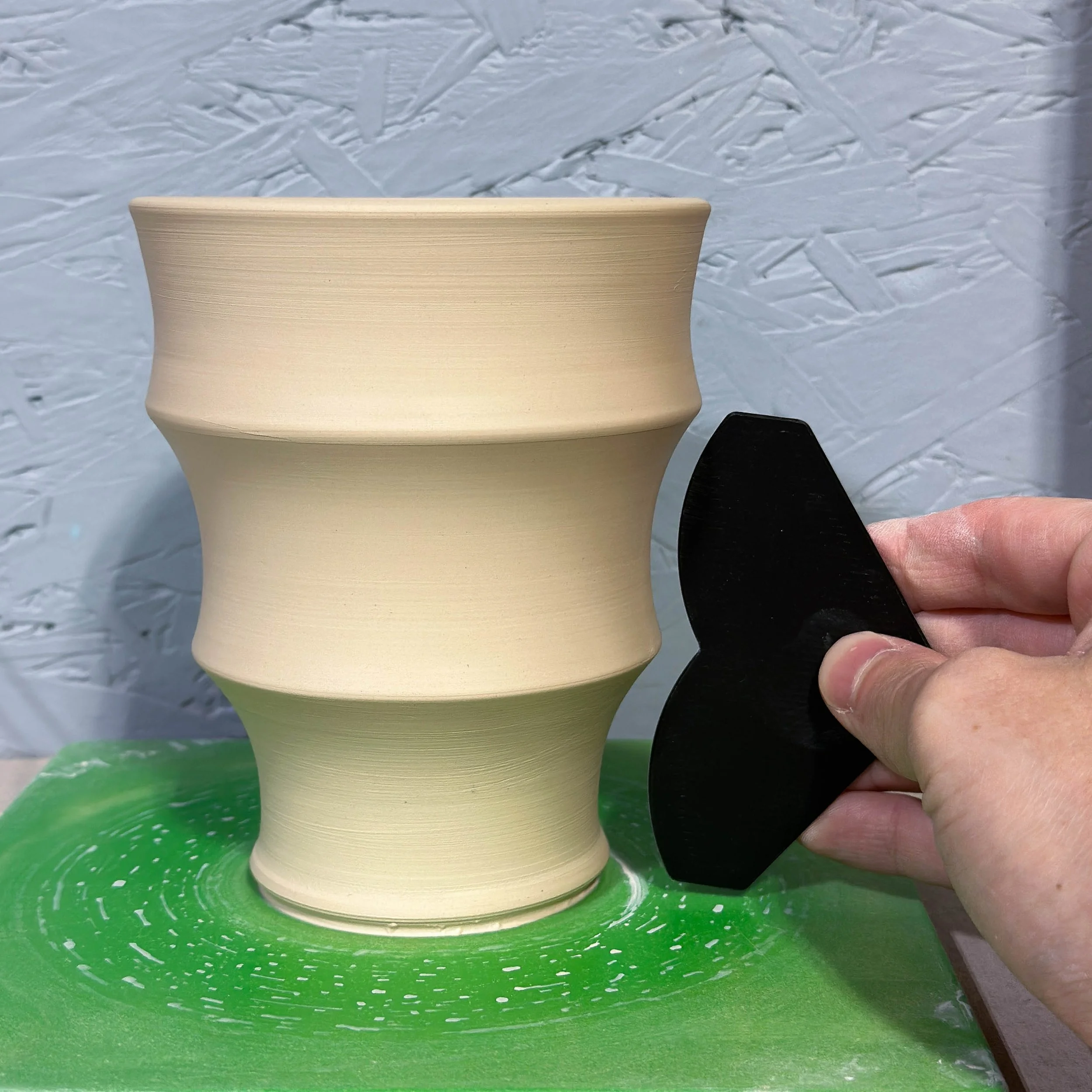

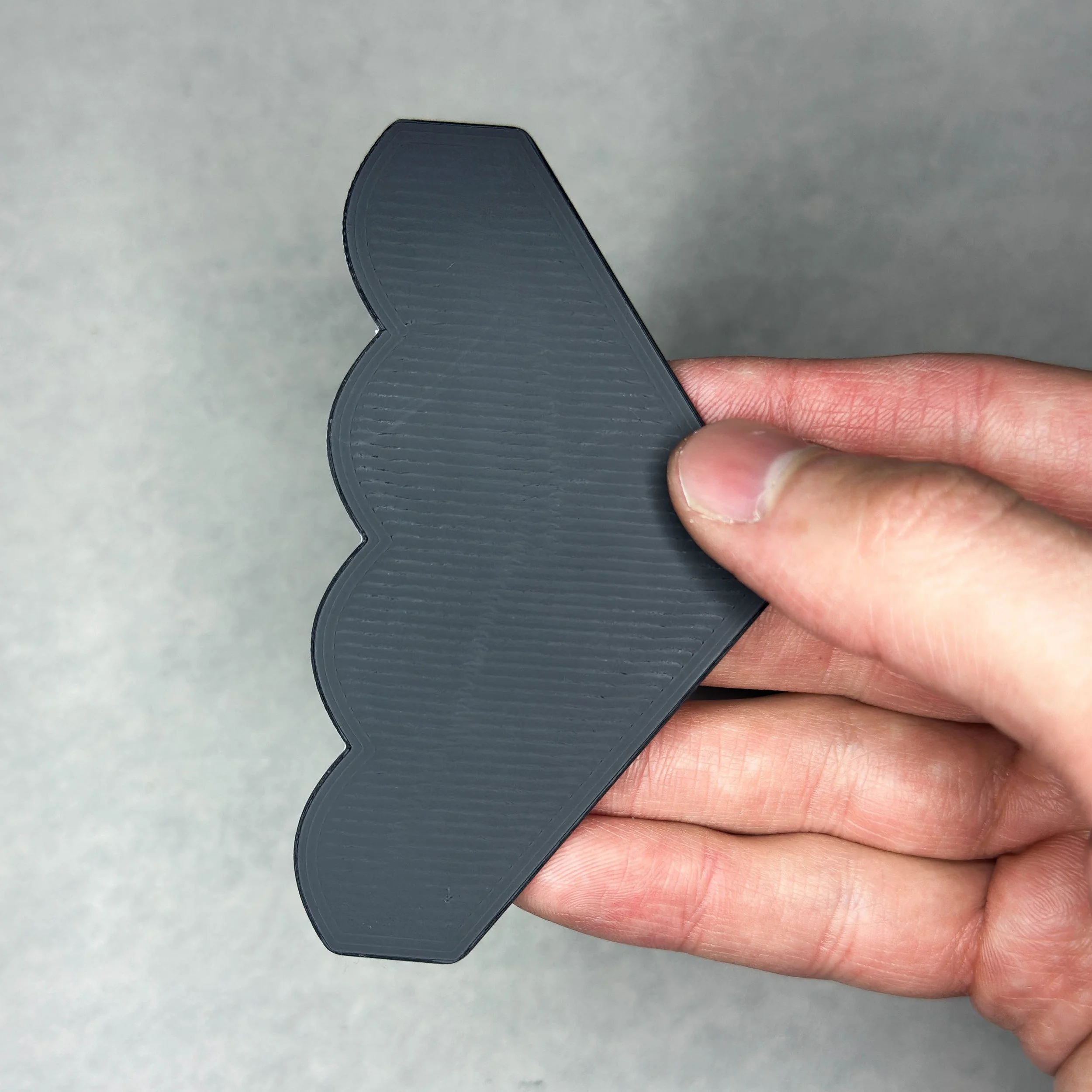

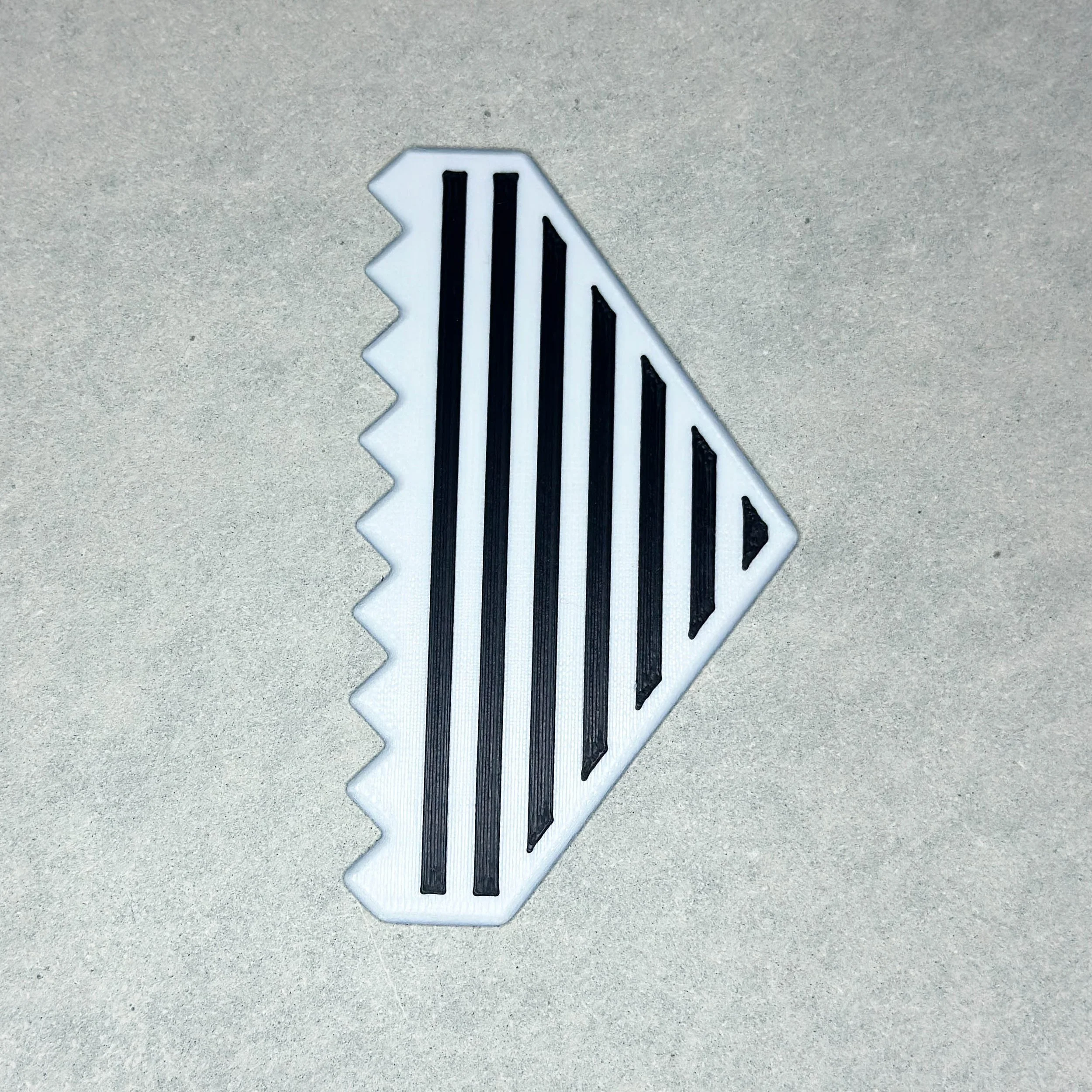

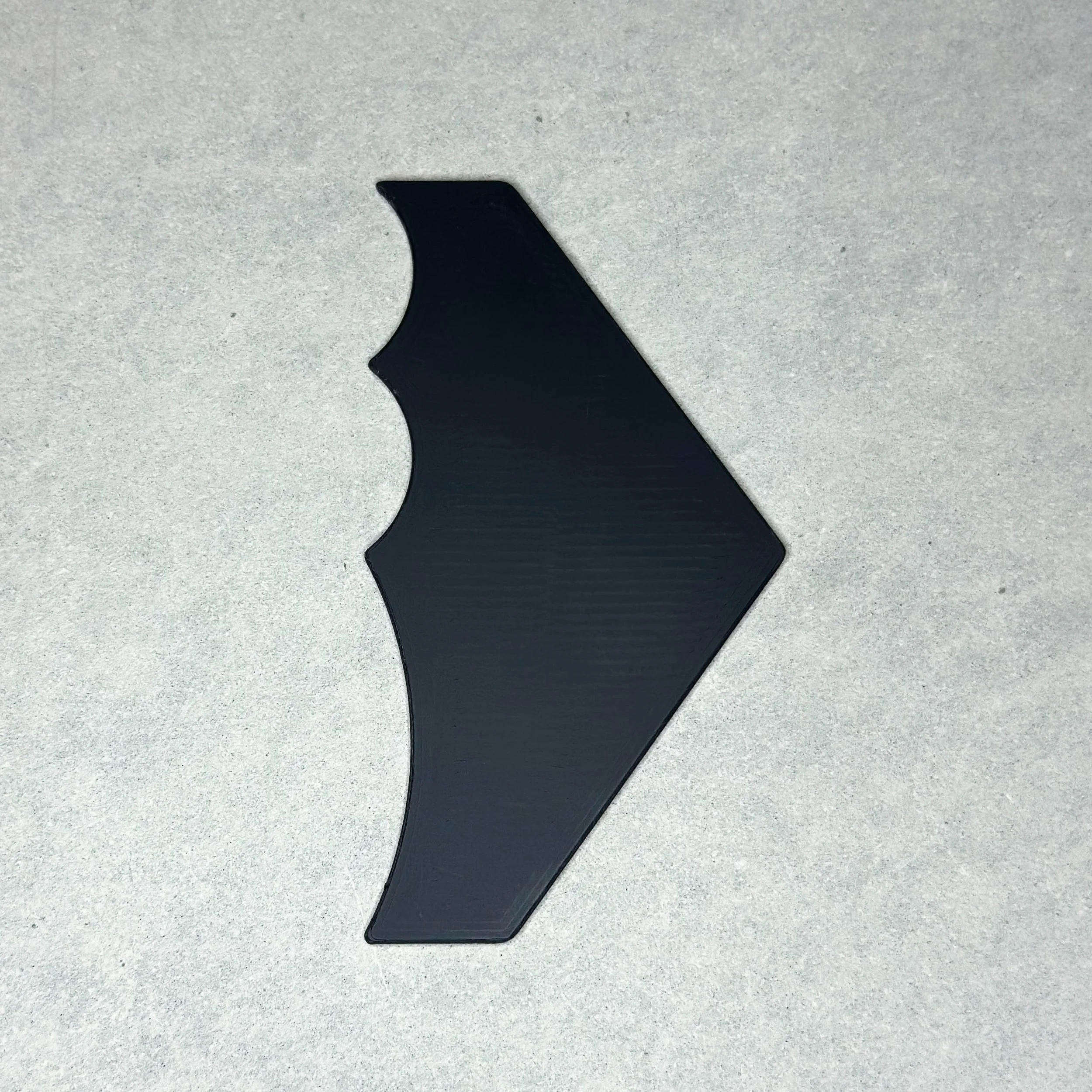

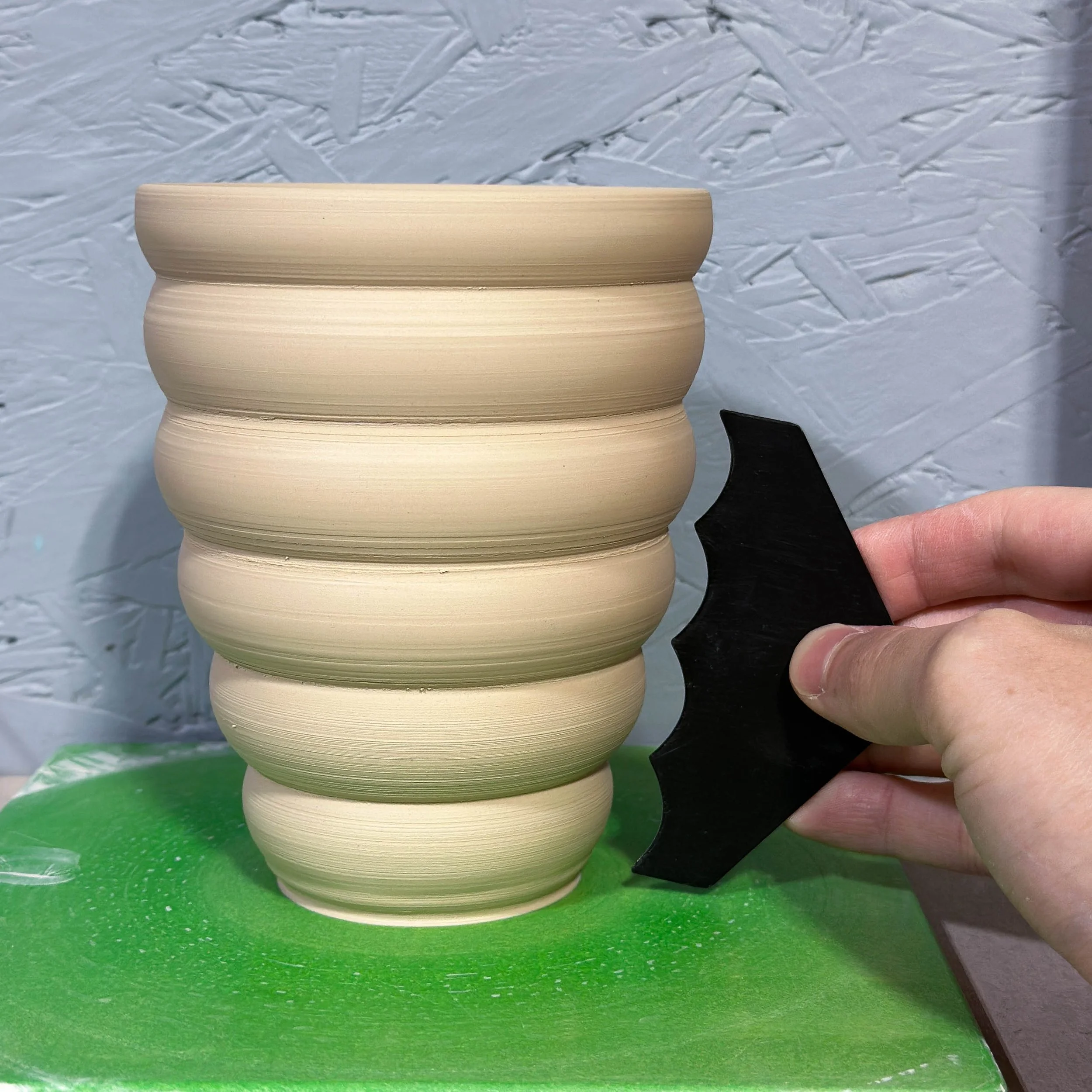

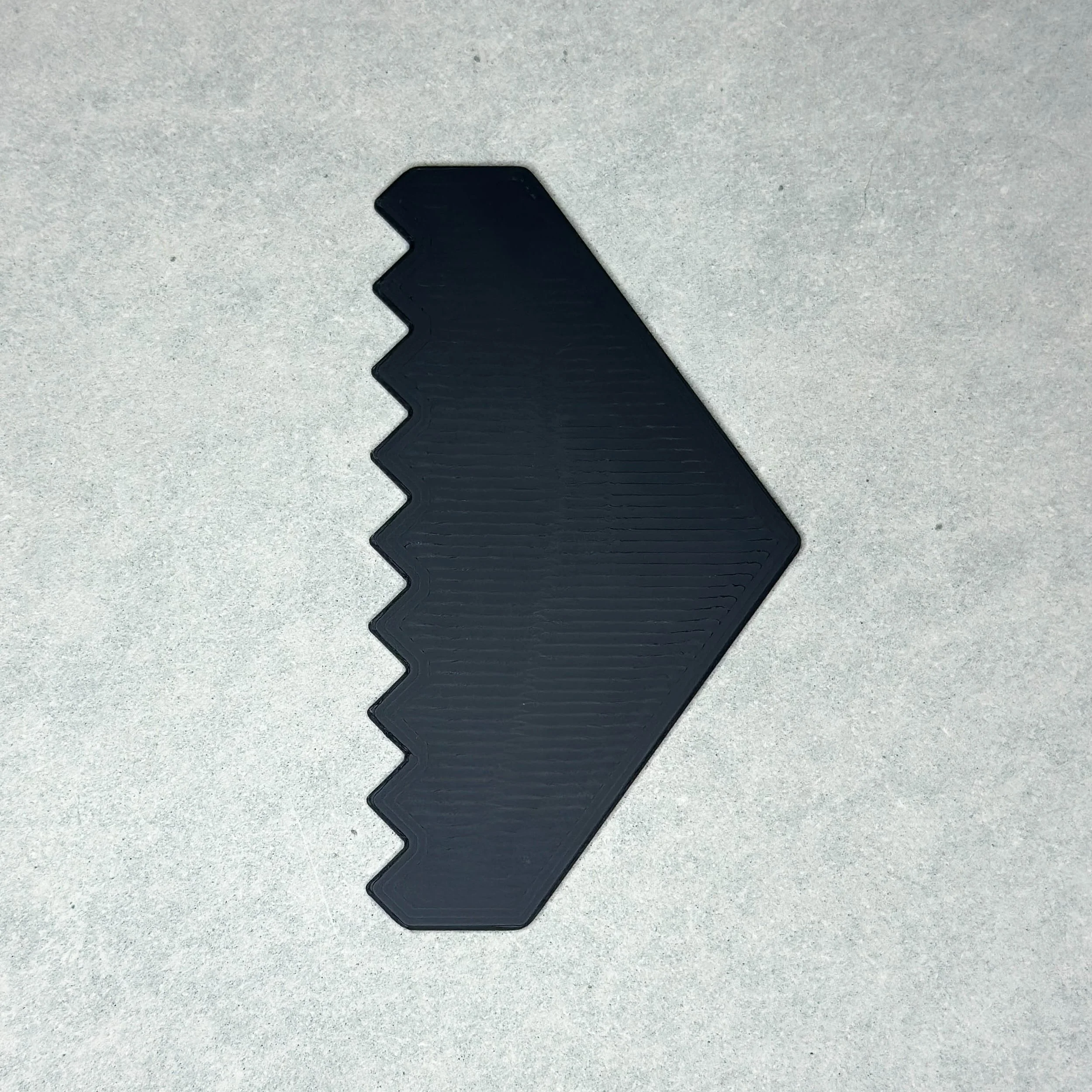

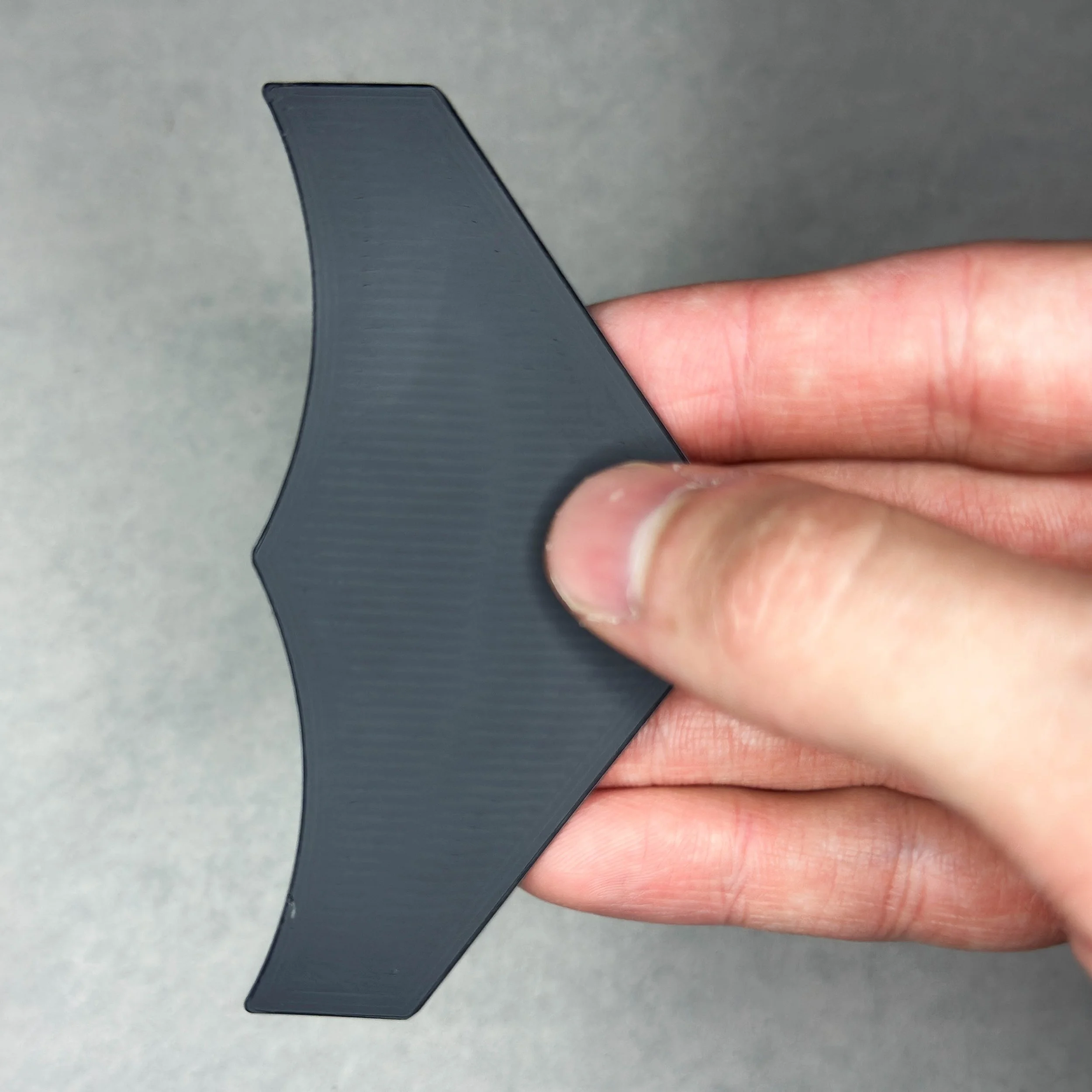

Profile Rib #1
12.5 x 7 cm
5 x 2.75 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
Profile Rib #2
12.5 cm x 6 cm
5 x 2.25 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
Profile Rib #3
12.5 cm x 6 cm
5 x 2.25 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
Profile Rib #4
12.5 cm x 7 cm
5 x 2.75 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
Profile Rib #5
12.5 cm x 7 cm
5 x 2.75 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
Profile Rib #6
12.5 cm x 7 cm
5 x 2.75 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smoother finish
Profile Rib #7
12.5 cm x 7 cm
5 x 2.75 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smoother finish
Profile Rib #8
10.5 cm x 6.5 cm
4.25 x 2.5 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
Profile Rib #9
10.5 cm x 6.5 cm
4.25 x 2.5 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish

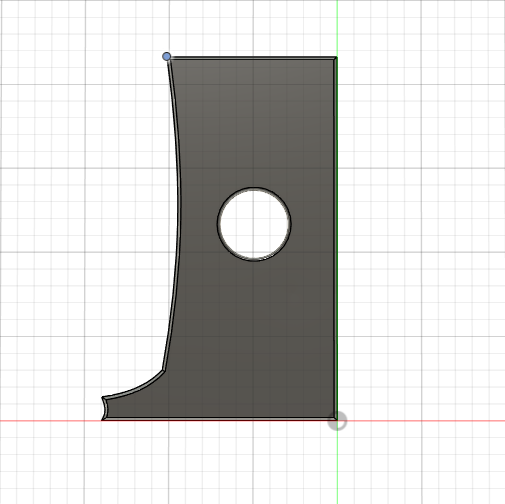

Profile Rib #10
10.5 cm x 6.5 cm
4.25 x 2.5 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish

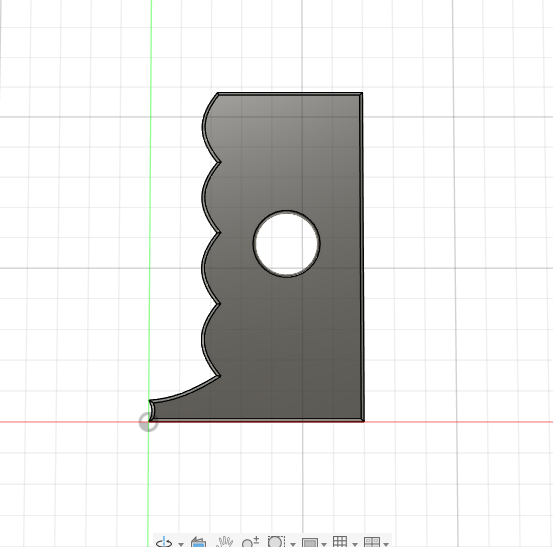

Profile Rib #11
10.5 cm x 6.5 cm
4.25 x 2.5 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish

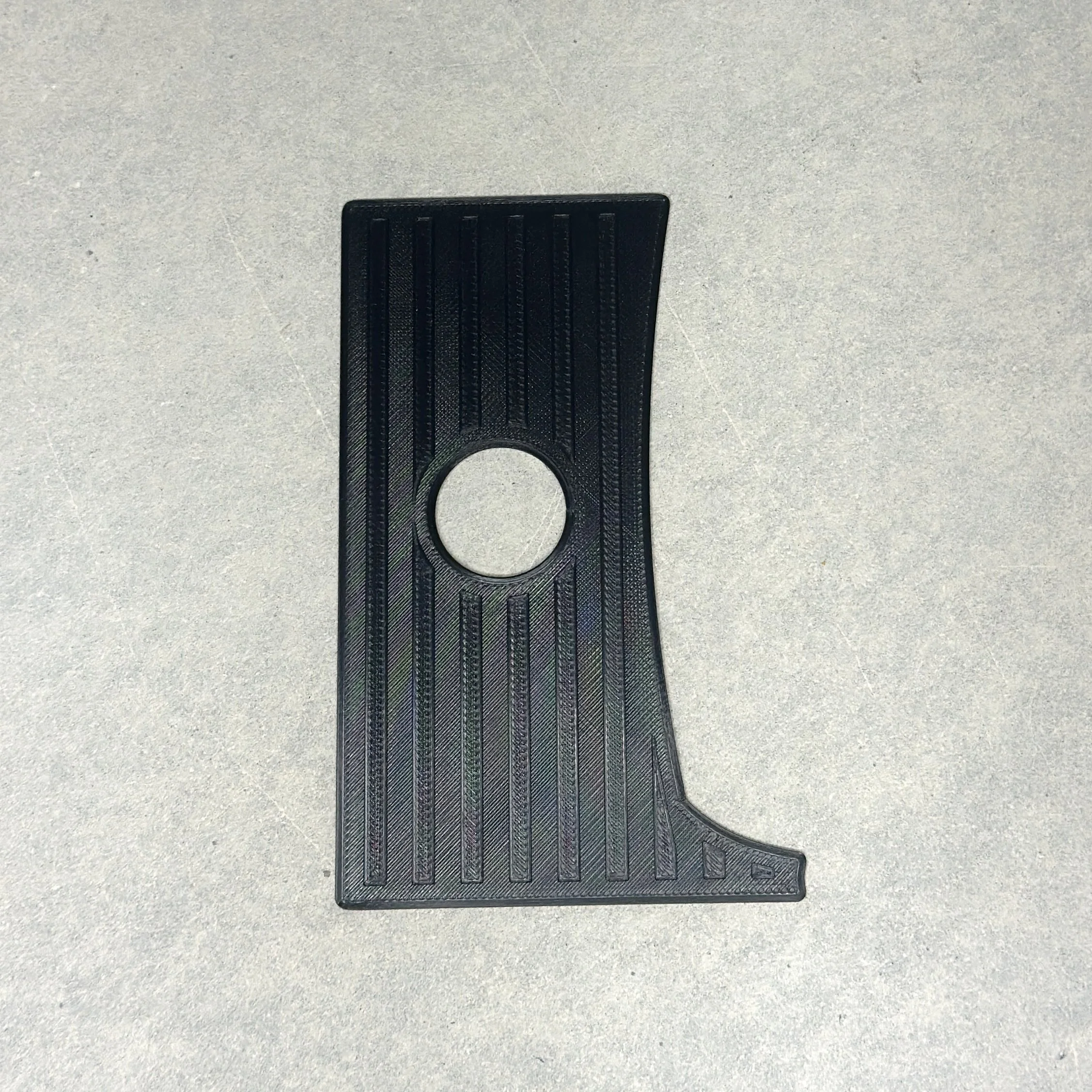

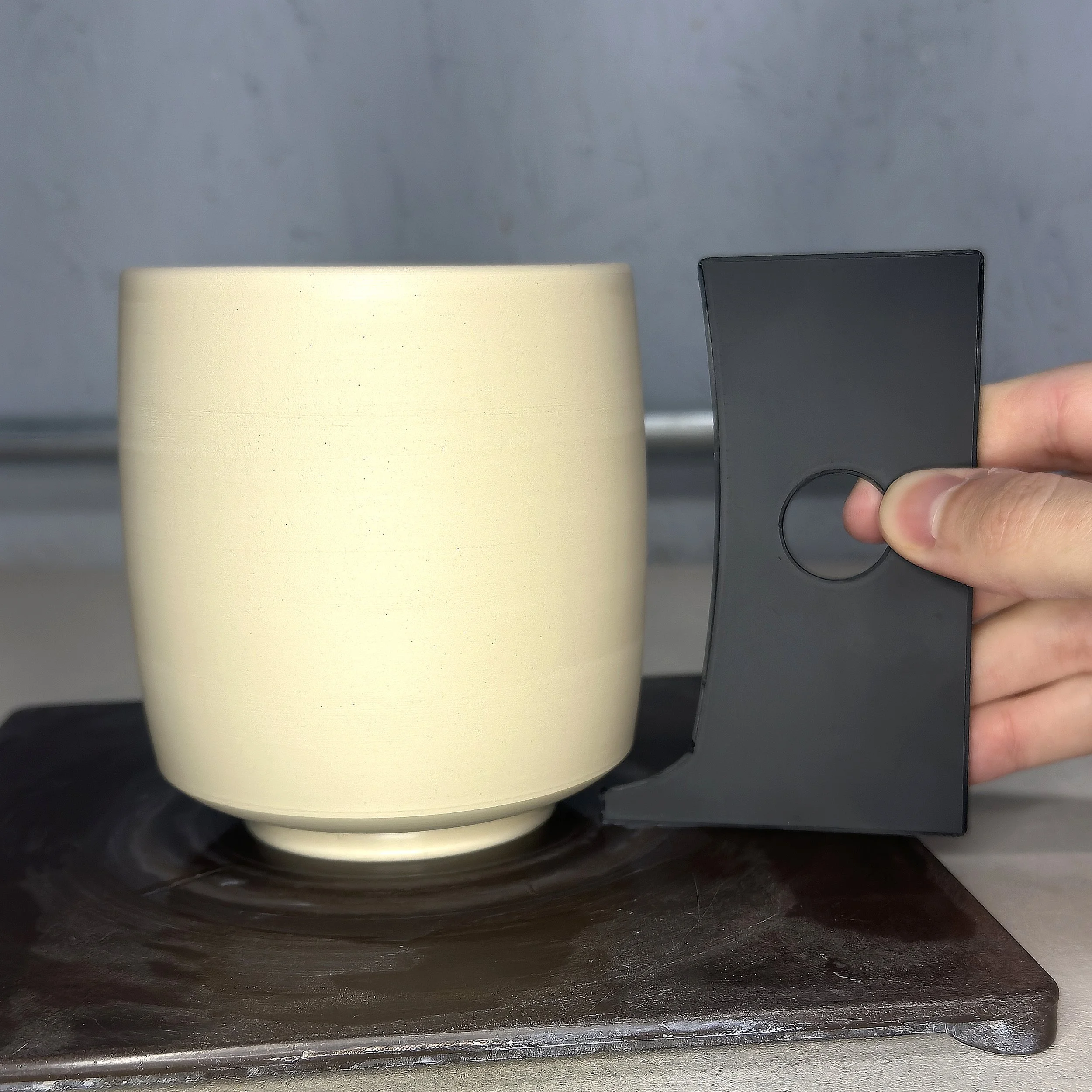

Angled Foot Rib
10 cm x 4.5 cm
4 x 2 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
Round Foot Rib
10 cm x 4.5 cm
4 x 2 in
2mm thick
Printed on smooth PEI Plate on high quality setting for smooth finish
